Description

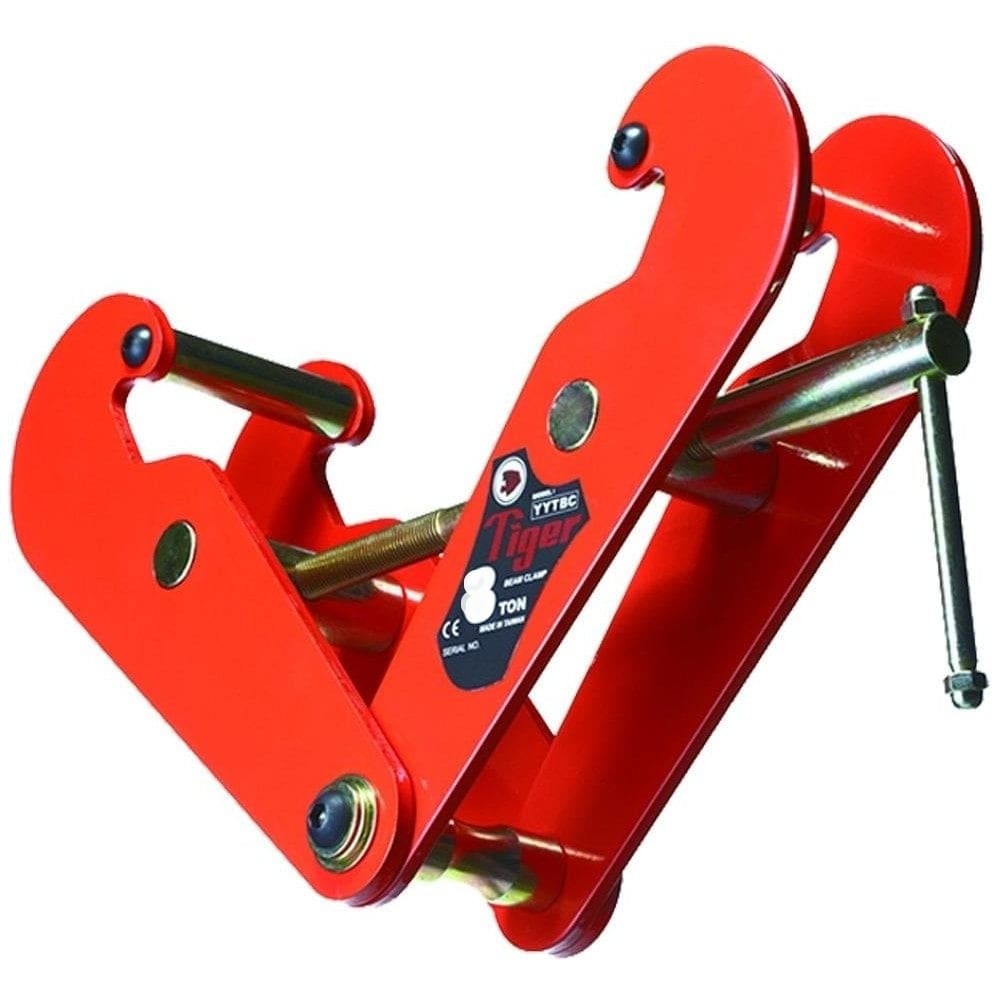

Tiger Beam Clamp BC Flange Width 75-305mm, WLL 5 Tonne
Multi-directional adjusting screw spindle for easy attachment.
5 to 1 factor of safety.
Quick and versatile rigging point.
Wide adjustment range.
Low headroom.
Model Number: BC-0500.
WLL: 5 Tonne (5000 Kgs).
Flange Size: 75-305mm.
Max. Flange Thickness: 35mm.
Bearing to Bearing: 175-224mm.
Overall Width: 214-460mm.
Overall Depth: 121mm.
Net Weight: 10Kgs.
Conforms to: BSEN 13155.
These units meet and exceed all requirements of BS EN 13155:2003+A2:2009 and AS4991. Each unit comes fully certified with a test certificate or an EC declaration that states the compliance with health and safety requirements of the Machinery Directive 2006/42/EC.
