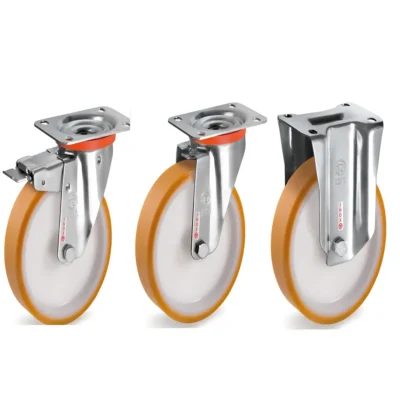

Industrial Heavy Duty and Mechanical Handling

Home/Wheels & Castors/Tellure Rota/Industrial Heavy Duty and Mechanical Handling
  • TR622106

    47.80
    • Brand: Tellure Rota
    • Wheel / Castor Type: Wheel Only
    • Wheel Diameter: 200mm
    • Wheel Width: 50mm
    • Max Load Capacity daN: 700kg
    • Weight: 1.85kg
    • Hub Bore Diameter: 20mm
    • Hub Length: 60mm
    • Ball bearing seat diametre: 47mm
    • Ball bearing seat depth: 14.5mm
    • Static load daN: 1000kg
    • Rolling resistance daN: 500kg
  • TR627206

    77.00
    • Brand: Tellure Rota
    • Wheel / Castor Type: SWIVEL TOP PLATE BRACKET TYPE P WITH REAR BRAKE
    • Wheel Diameter: 200mm
    • Wheel Width: 50mm
    • Max Load Capacity daN: 700kg
    • Weight: 4.91kg
    • Height: 250mm
    • Top-plate outer dimensions: 140mm x 110mm
    • Hole Spacing: 105mm x 80mm
    • Hole Width: 11mm
    • Offset: 70mm
    • Brake swept radius: 126mm
  • TR632156

    75.10
    • Brand: Tellure Rota
    • Wheel / Castor Type: Wheel Only
    • Wheel Diameter: 200mm
    • Wheel Width: 50mm
    • Hub Bore Diameter: 20mm
    • Hub Length: 55mm
    • Ball bearing seat diametre: 47mm
    • Ball bearing seat depth: 14mm
    • Static load daN: 1500kg
    • Rolling resistance daN: 380kg
    • Weight: 3.65kg
    • Load capacity daN 4km/h: 1000kg
    • Load capacity daN 6km/h: 800kg
  • TR638917

    236.05
    • Brand: Tellure Rota
    • Wheel / Castor Type: SWIVEL TOP PLATE BRACKET EE HD, REAR ADJUSTABLE BRAKE
    • Wheel Diameter: 250mm
    • Wheel Width: 80mm
    • Hub Bore Diameter: 320mm
    • Weight: 17.38kg
    • Load capacity daN 4km/h: 1600kg
    • Load capacity daN 6km/h: 1300kg
    • Top-plate outer dimensions: 175mm x 140mm
    • Hole Spacing: 140mm x 105mm
    • Hole Width: 14mm
    • Brake swept radius: 166mm
  • TR641102

    15.88
    • Brand: Tellure Rota
    • Wheel / Castor Type: Wheel Only
    • Wheel Diameter: 100mm
    • Wheel Width: 40mm
    • Hub Length: 45mm
    • Hub Diameter: 55mm
    • Hub Bore Diameter: 15H7
    • Static load daN: 500kg
    • Weight: 1.50kg
    • Load capacity daN 4km/h: 300kg
    • Load capacity daN 6km/h: 300kg
  • TR642155

    43.32
    • Brand: Tellure Rota
    • Wheel / Castor Type: Wheel Only
    • Wheel Diameter: 180mm
    • Wheel Width: 50mm
    • Hub Bore Diameter: 20mm
    • Hub Length: 55mm
    • Ball bearing seat diametre: 47mm
    • Ball bearing seat depth: 14mm
    • Static load daN: 1100kg
    • Rolling resistance daN: 350kg
    • Weight: 3.02kg
    • Load capacity daN 4km/h: 900kg
    • Load capacity daN 6km/h: 720kg
  • TR642168

    113.32
    • Brand: Tellure Rota
    • Wheel / Castor Type: Wheel Only
    • Wheel Diameter: 300mm
    • Wheel Width: 80mm
    • Hub Bore Diameter: 30mm
    • Hub Length: 86mm
    • Ball bearing seat diametre: 62mm
    • Ball bearing seat depth: 17mm
    • Static load daN: 3400kg
    • Rolling resistance daN: 600kg
    • Weight: 13.80kg
    • Load capacity daN 4km/h: 2300kg
    • Load capacity daN 6km/h: 1800kg
  • TR642363

    30.59
    • Brand: Tellure Rota
    • Wheel / Castor Type: Wheel Only
    • Wheel Diameter: 125mm
    • Wheel Width: 50mm
    • Hub Bore Diameter: 25mm
    • Hub Length: 55mm
    • Ball bearing seat diametre: 47mm
    • Ball bearing seat depth: 14mm
    • Static load daN: 800kg
    • Rolling resistance daN: 270kg
    • Weight: 1.96kg
    • Load capacity daN 4km/h: 550kg
    • Load capacity daN 6km/h: 440kg
  • TR642366

    69.00
    • Brand: Tellure Rota
    • Wheel / Castor Type: Wheel Only
    • Wheel Diameter: 200mm
    • Wheel Width: 80mm
    • Hub Bore Diameter: 30mm
    • Hub Length: 86mm
    • Ball bearing seat diametre: 62mm
    • Ball bearing seat depth: 17mm
    • Static load daN: 2000kg
    • Rolling resistance daN: 450kg
    • Weight: 7.24kg
    • Load capacity daN 4km/h: 550kg
    • Load capacity daN 6km/h: 440kg
  • TR647824

    108.65
    • Brand: Tellure Rota
    • Wheel / Castor Type: SWIVEL TOP PLATE BRACKET TYPE EP
    • Wheel Diameter: 150mm
    • Wheel Width: 60mm
    • Height: 200mm
    • Top-plate outer dimensions: 135mm x 110mm
    • Hole Spacing: 105mm x 80mm
    • Hole Width: 11mm
    • Offset: 70mm
    • Load capacity daN 4km/h: 850kg
    • Load capacity daN 6km/h: 680kg
    • Weight: 5.44kg
  • TR647855

    105.93
    • Brand: Tellure Rota
    • Wheel / Castor Type: SWIVEL TOP PLATE BRACKET TYPE EP
    • Wheel Diameter: 180mm
    • Wheel Width: 50mm
    • Height: 228mm
    • Top-plate outer dimensions: 140mm x 110mm
    • Hole Spacing: 105mm x 80mm
    • Hole Width: 11mm
    • Offset: 70mm
    • Load capacity daN 4km/h: 720kg
    • Load capacity daN 6km/h: 900kg
    • Weight: 5.60kg
  • TR647864

    100.86
    • Brand: Tellure Rota
    • Wheel / Castor Type: SWIVEL TOP PLATE BRACKET TYPE EP
    • Wheel Diameter: 160mm
    • Wheel Width: 50mm
    • Height: 205mm
    • Top-plate outer dimensions: 140mm x 110mm
    • Hole Spacing: 105mm x 80mm
    • Hole Width: 11mm
    • Offset: 70mm
    • Load capacity daN 4km/h: 750kg
    • Load capacity daN 6km/h: 600kg
    • Weight: 5.16kg
  • TR648306

    102.73
    • Brand: Tellure Rota
    • Wheel / Castor Type: Swivel top plate bracket EE MHD
    • Wheel Diameter: 200mm
    • Wheel Width: 50mm
    • Height: 252mm
    • Top-plate outer dimensions: 135mm x 110mm
    • Hole Spacing: 105mm x 80mm
    • Hole Width: 11mm
    • Offset: 70mm
    • Load capacity daN 4km/h: 900kg
    • Load capacity daN 6km/h: 800kg
    • Weight: 6.77kg
  • TR648316

    164.90
    • Brand: Tellure Rota
    • Wheel / Castor Type: Swivel top plate bracket EE HD
    • Wheel Diameter: 200mm
    • Wheel Width: 80mm
    • Height: 275mm
    • Top-plate outer dimensions: 175mm x 140mm
    • Hole Spacing: 140mm x 105mm
    • Hole Width: 14mm
    • Offset: 65mm
    • Load capacity daN 4km/h: 1600kg
    • Load capacity daN 6km/h: 1300kg
    • Weight: 13.72kg
  • TR648406

    74.87
    • Brand: Tellure Rota
    • Wheel / Castor Type: Fixed bracket EE MHD
    • Wheel Diameter: 200mm
    • Wheel Width: 50mm
    • Height: 252mm
    • Top-plate outer dimensions: 135mm x 110mm
    • Hole Spacing: 105mm x 80mm
    • Hole Width: 11mm
    • Load capacity daN 4km/h: 1000kg
    • Load capacity daN 6km/h: 800kg
    • Weight: 5.79kg
  • TR648416

    105.41
    • Brand: Tellure Rota
    • Wheel / Castor Type: Fixed bracket EE HD
    • Wheel Diameter: 200mm
    • Wheel Width: 80mm
    • Height: 275mm
    • Top-plate outer dimensions: 175mm x 140mm
    • Hole Spacing: 140mm x 105mm
    • Hole Width: 14mm
    • Load capacity daN 4km/h: 1600kg
    • Load capacity daN 6km/h: 1300kg
    • Weight: 12.18kg
  • TR648506

    125.48
    • Brand: Tellure Rota
    • Wheel / Castor Type: Swivel top plate bracket EE MHD, rear brake
    • Wheel Diameter: 200mm
    • Wheel Width: 50mm
    • Height: 252mm
    • Top-plate outer dimensions: 135mm x 110mm
    • Hole Spacing: 105mm x 80mm
    • Hole Width: 11mm
    • Offset: 70mm
    • Brake swept radius: 157mm
    • Load capacity daN 4km/h: 1000kg
    • Load capacity daN 6km/h: 800kg
    • Weight: 7.65kg
  • TR648516

    184.11
    • Brand: Tellure Rota
    • Wheel / Castor Type: Swivel top plate bracket EE HD, rear brake
    • Wheel Diameter: 200mm
    • Wheel Width: 80mm
    • Height: 275mm
    • Top-plate outer dimensions: 175mm x 140mm
    • Hole Spacing: 140mm x 105mm
    • Hole Width: 14mm
    • Offset: 65mm
    • Brake swept radius: 166mm
    • Load capacity daN 4km/h: 1600kg
    • Load capacity daN 6km/h: 1300kg
    • Weight: 14.6kg
  • TR648517

    228.94
    • Brand: Tellure Rota
    • Wheel / Castor Type: Swivel top plate bracket EE HD, rear brake
    • Wheel Diameter: 250mm
    • Wheel Width: 80mm
    • Height: 320mm
    • Top-plate outer dimensions: 175mm x 140mm
    • Hole Spacing: 140mm x 105mm
    • Hole Width: 14mm
    • Offset: 74mm
    • Brake swept radius: 166mm
    • Load capacity daN 4km/h: 1600kg
    • Load capacity daN 6km/h: 1300kg
    • Weight: 17.38kg
  • TR652102

    16.79
    • Brand: Tellure Rota
    • Wheel / Castor Type: Wheel Only
    • Wheel Diameter: 100mm
    • Wheel Width: 30mm
    • Hub Bore Diameter: 12mm
    • Hub Length: 40mm
    • Static load daN: 350kg
    • Rolling resistance daN: 225kg
    • Max Load Capacity daN: 250kg
    • Weight: 0.34kg
